plot
move pen to new position in user units
| parameter | type | units | description |
|---|---|---|---|
| x,y | float | uu | new pen position |
| linetype | int | -- | format of the line drawn |
| returns: | void |
Description
plot moves the pen to (x,y) in user units. The format of the line produced (if any) is determined by the linetype parameter:- DOWN
- plot with the pen down, drawing a solid line with the current pen diameter (see plset)
- UP
- plot with the pen up, so nothing is plotted, the pen is only moved
- DASH
- plot a dashed line, alternately 2 dash units DOWN and 2 dash units UP
- any
- other value is used as a format to create a dashed line; see the section Dash
Dash format
The third argument of plot is interpreted as a 4-digit number, each digit representing the number of dash units by which the pen is alternately going up and down. Alternately, a leading 1 may be added to the 4-digit number, resulting in the dash unit to be set to 0.1 mm temporarily. The lengths over which the pen went up and down is remembered between successive calls of plot or any other routine producing dashed lines, thus allowing building up a dashed line from many small sections. The dash unit, by default, is 1 millimeter, but this may changed with plsetSee also
plotm, plotr, plotrm, plu, plumExamples

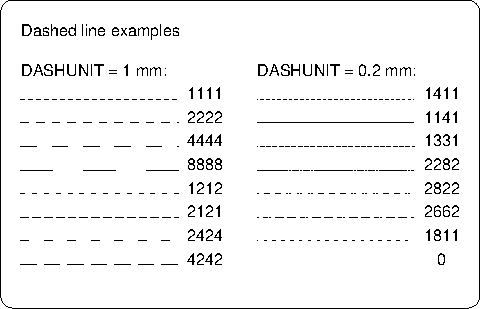

plinit PS plot A4 50 160 "" "" plset HEIGHT 3 plformat .5 .5 "Dashed line examples" plmvorg 0 -10 pltext0 "DASHUNIT = 1 mm:" plotr 0 -6 UP d=1111 plotr 40 0 d plformat .5 .5 %6.0f d plotr -40 -6 UP d=2222 plotr 40 0 d plformat .5 .5 %6.0f d plotr -40 -6 UP d=4444 plotr 40 0 d plformat .5 .5 %6.0f d plotr -40 -6 UP d=8888 plotr 40 0 d plformat .5 .5 %6.0f d plotr -40 -6 UP d=1212 plotr 40 0 d plformat .5 .5 %6.0f d plotr -40 -6 UP d=2121 plotr 40 0 d plformat .5 .5 %6.0f d plotr -40 -6 UP d=2424 plotr 40 0 d plformat .5 .5 %6.0f d plotr -40 -6 UP d=4242 plotr 40 0 d plformat .5 .5 %6.0f d plotr -40 -6 UP plset DASHUNIT .2 plmvorg 60 0 pltext0 "DASHUNIT = 0.2 mm:" plotr 0 -6 UP d=1411 plotr 40 0 d plformat .5 .5 %6.0f d plotr -40 -6 UP d=1141 plotr 40 0 d plformat .5 .5 %6.0f d plotr -40 -6 UP d=1331 plotr 40 0 d plformat .5 .5 %6.0f d plotr -40 -6 UP d=2282 plotr 40 0 d plformat .5 .5 %6.0f d plotr -40 -6 UP d=2822 plotr 40 0 d plformat .5 .5 %6.0f d plotr -40 -6 UP d=2662 plotr 40 0 d plformat .5 .5 %6.0f d plotr -40 -6 UP d=1811 plotr 40 0 d plformat .5 .5 %6.0f d plotr -40 -6 UP d=0 plotr 40 0 d plformat .5 .5 %6.0f d plotr -40 -6 UP plframe 5 3
